AMD Mycro Direct-Die Pro
The AMD Mycro Direct-Die Pro RGB V1 features a hybrid structure with two different sizes of microfins and a jet plate for optimized flow. The cooler's cold plate is made of nickel-plated copper and is mounted directly on the CPU chip. For this, the Socket Actuation Mechanism (SAM) of the motherboard is removed, and the processor must be delidded. The nickel plating of the cooler plate creates a barrier layer, preventing gallium-based liquid metal from diffusing into the copper, making multiple applications of liquid metal usually unnecessary.
- Water cooler for direct-die mounting
- Microfin cooler made of nickel-plated copper
- Replaces SAM and heatspreader
- Acrylic and aluminum cover
- G1/4-inch connections
- CPU compatibility list available online
- For delidded CPUs only! Caution: voids warranty!

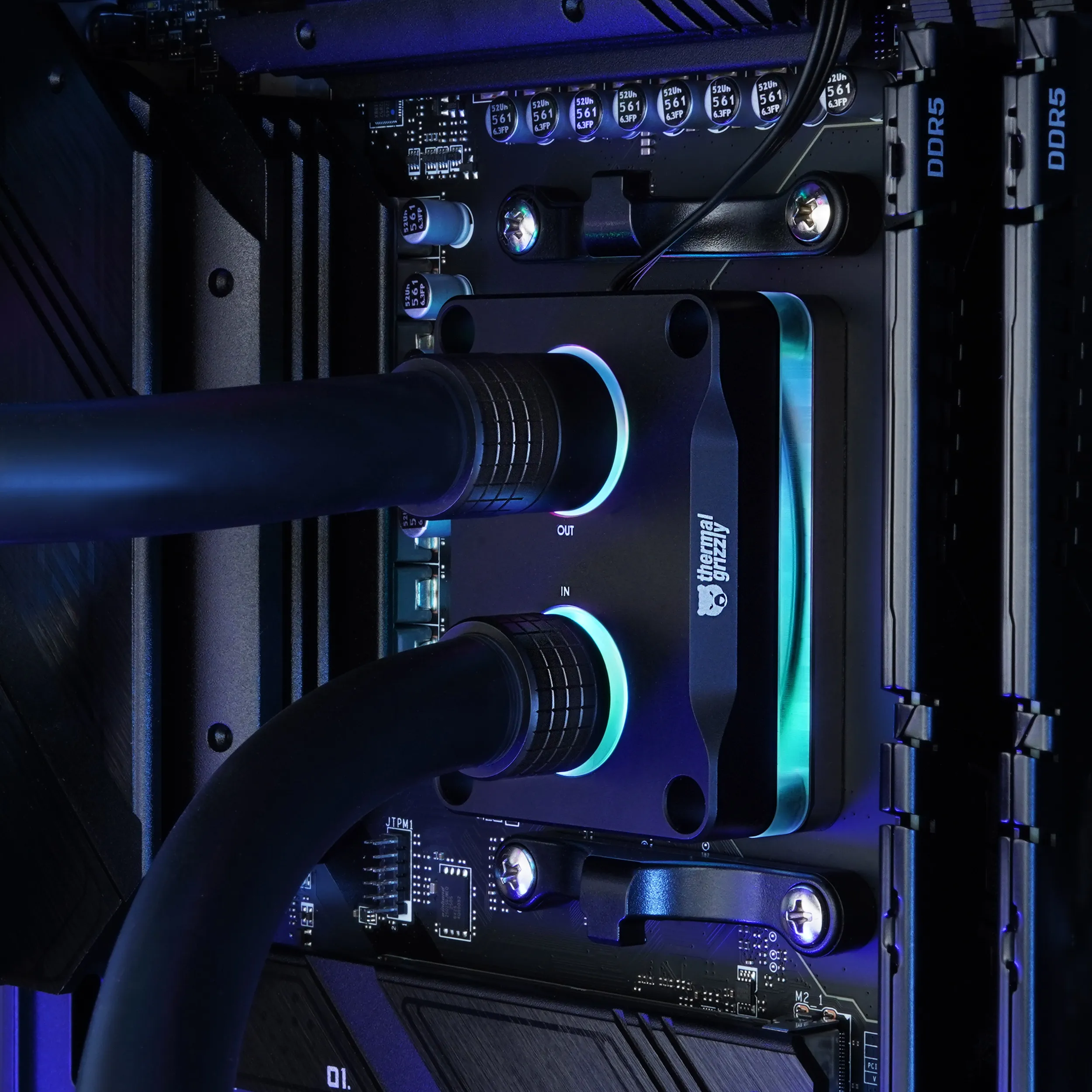

Between the cold plate and the anodized aluminum cover, there is acrylic glass, which undergoes an annealing process after milling to relieve internal stress. This ensures that no stress cracks form in the acrylic glass over time, unlike hardened acrylic glass. RGB LEDs are located under the aluminum cover and are controlled via a 3-pin ARGB header (+5V/DATA/GND) through the motherboard. The LEDs illuminate the acrylic glass under the cover and the G1/4-inch connectors on the cover.
Attention: Removing the heatspreader (“delidding”) of a processor is at your own risk! The manufacturer's warranty expires when the CPU is delidded! Damage caused by delidding the CPU is not covered by the manufacturer's warranty!
Removing the Socket Actuation Mechanism (SAM) of the mainboard may invalidate the manufacturer's warranty of the mainboard manufacturer!
Ryzen 8X00G Compatibility:
Attention: The Mycro Direct-Die RGB is NOT COMPATIBLE with the APUs of the Ryzen 8000G series! For more information on the compatibility of the AMD Ryzen 5 8500G, AMD Ryzen 5 8600G and AMD Ryzen 7 8700G with our products, please watch the following video: “AMD Ryzen 8000 Delidded - Liquid Metal Changes Everything!” https://www.youtube.com/watch?v=C_V2YyXuqTc
Note on Ryzen 9000 compatibility:
According to initial internal tests, the AM5 Mycro Direct Die RGB is compatible with AMD's Ryzen 9000 processor series. The compatibility test only includes the normal 9000 CPUs. Ryzen 9000X3D CPUs will be tested as soon as available.
Scope of Delivery:
- 1x AMD Mycro Direct-Die RGB Pro V1
- 1x Insulation sheet
- 1x pressure test report to 600 mbar
- 4x pan-head screws UNC thread 1/4"
- 1x hexagon socket wrench 5/64"
- 1x angle wrench Torx T20
| Color: | black, silver |
|---|---|
| Connector type: | 3-pin |
| Lighting: | digital aRGB LEDs |
| Material: | Aluminum, acrylic, nickel-plated copper |
| Socket manufacturer: | AMD |
| Threading: | G1/4" female |
