Direct Die Frame

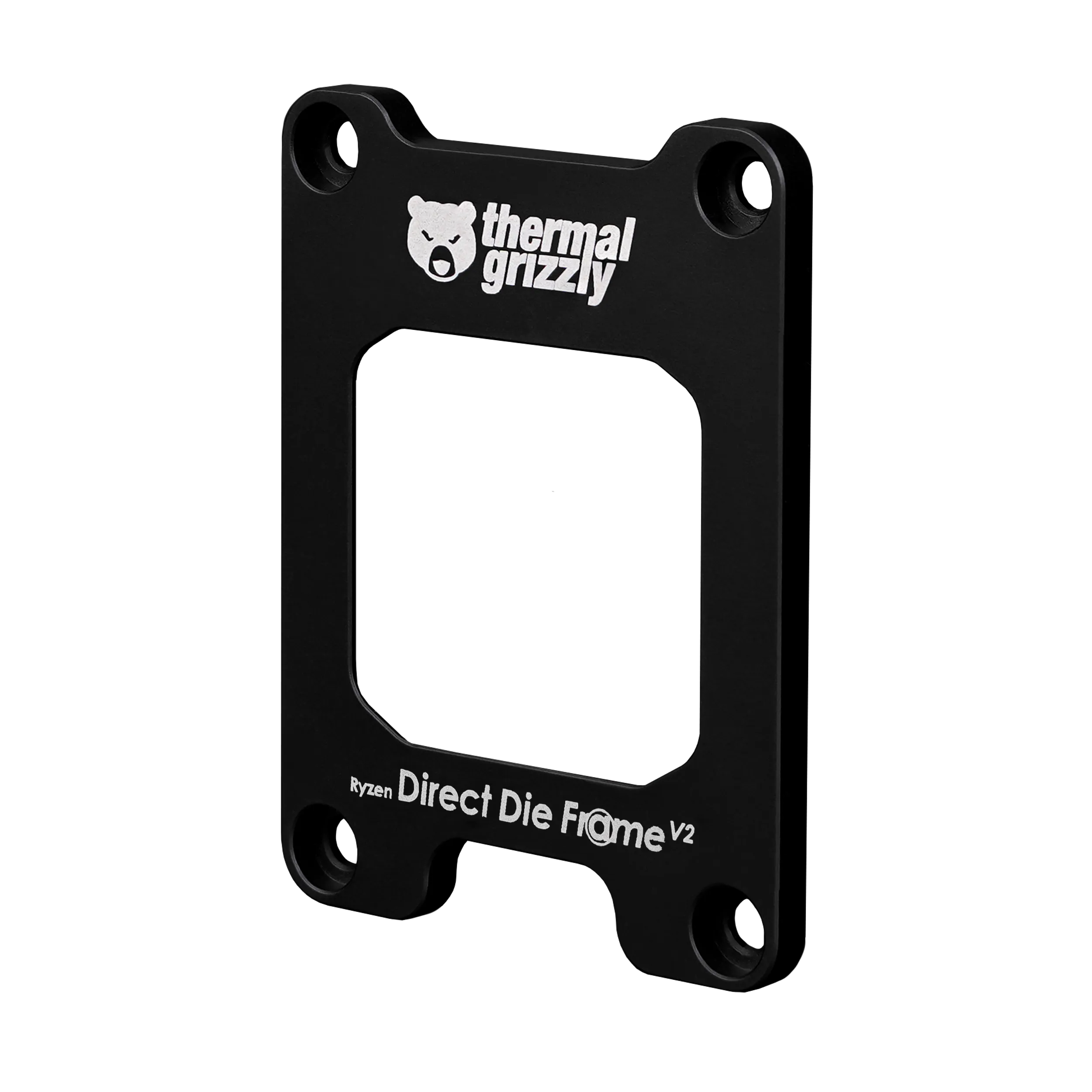

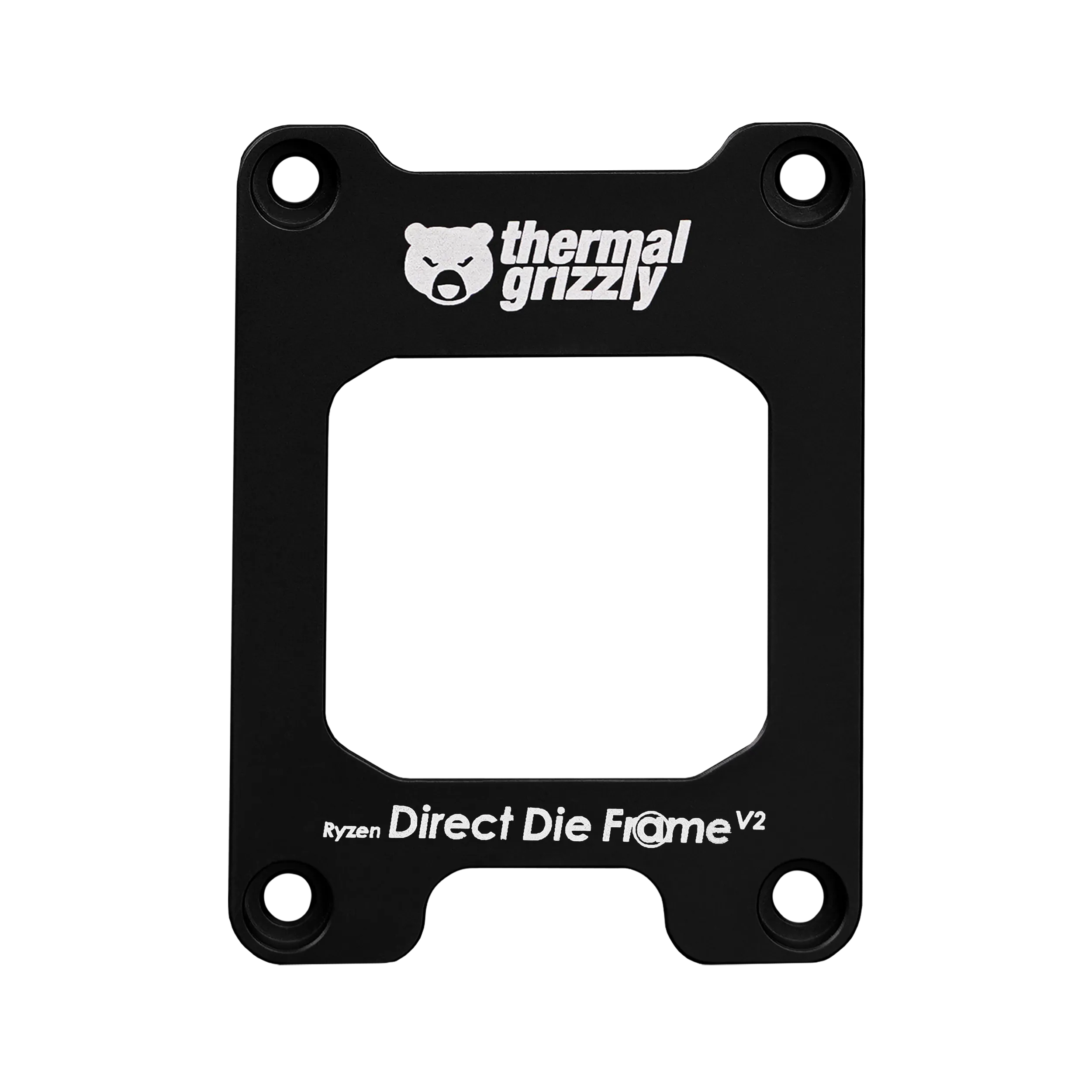

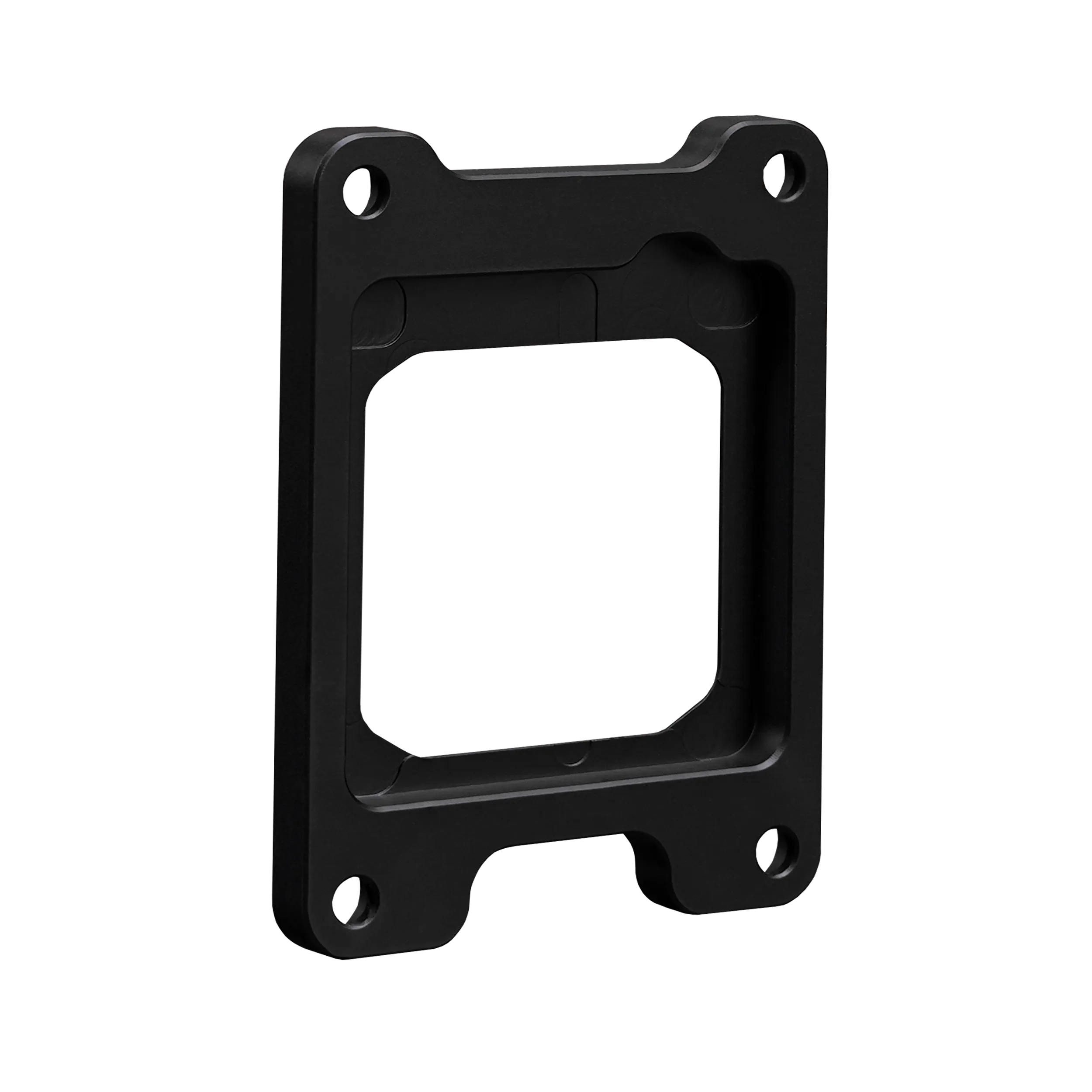

The Ryzen 7000 Direct Die Frame V2 is a CPU mounting frame for mounting CPUs without the integrated heatspreader. The V2 variant of the AMD Ryzen 7000 Direct Die Frame offers increased compatibility with AM5 CPUs, in particular the Ryzen 7000X3D processors. We strongly advise you to follow all the instructions below!
PRODUCT INFORMATION "DIRECT DIE FRAME V2"

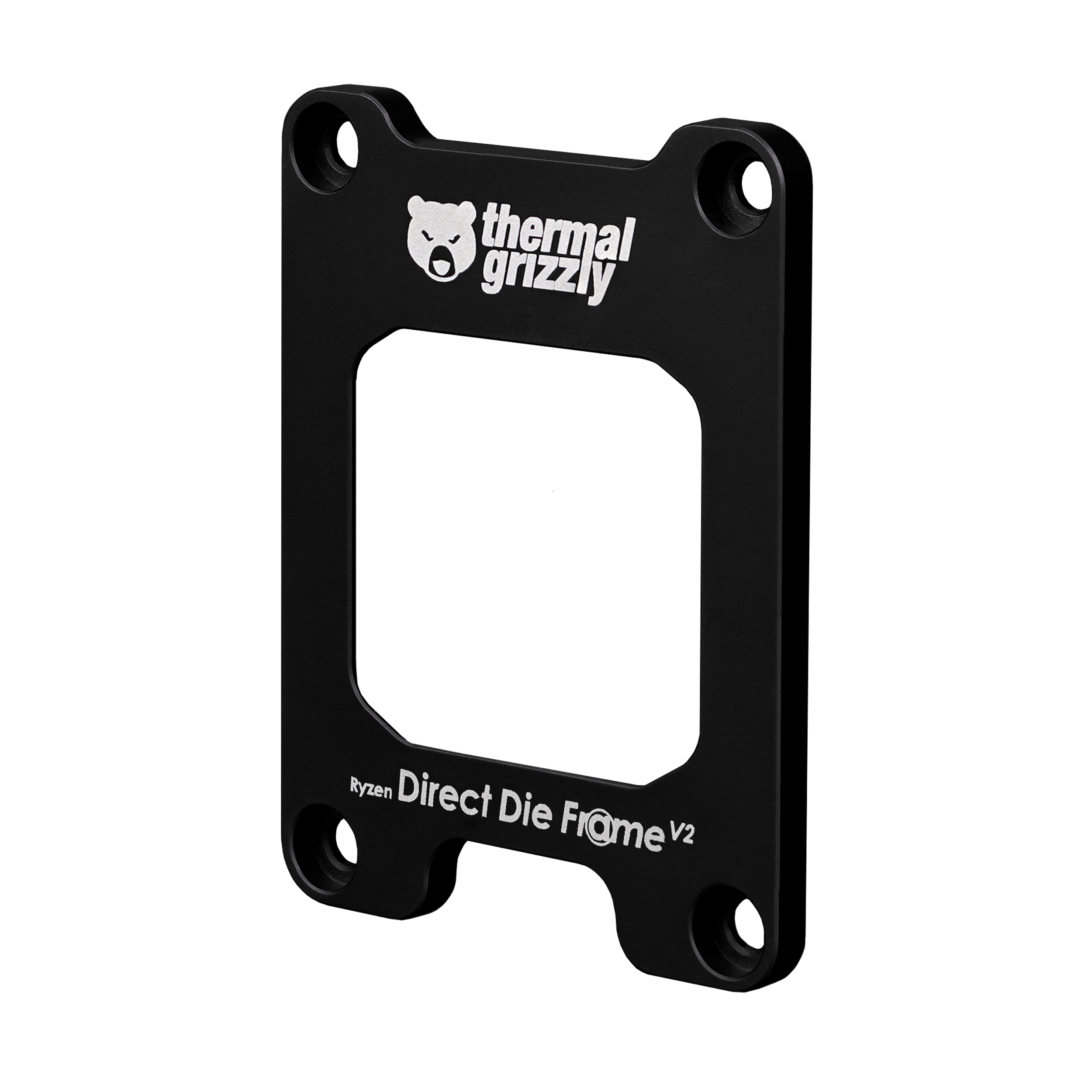

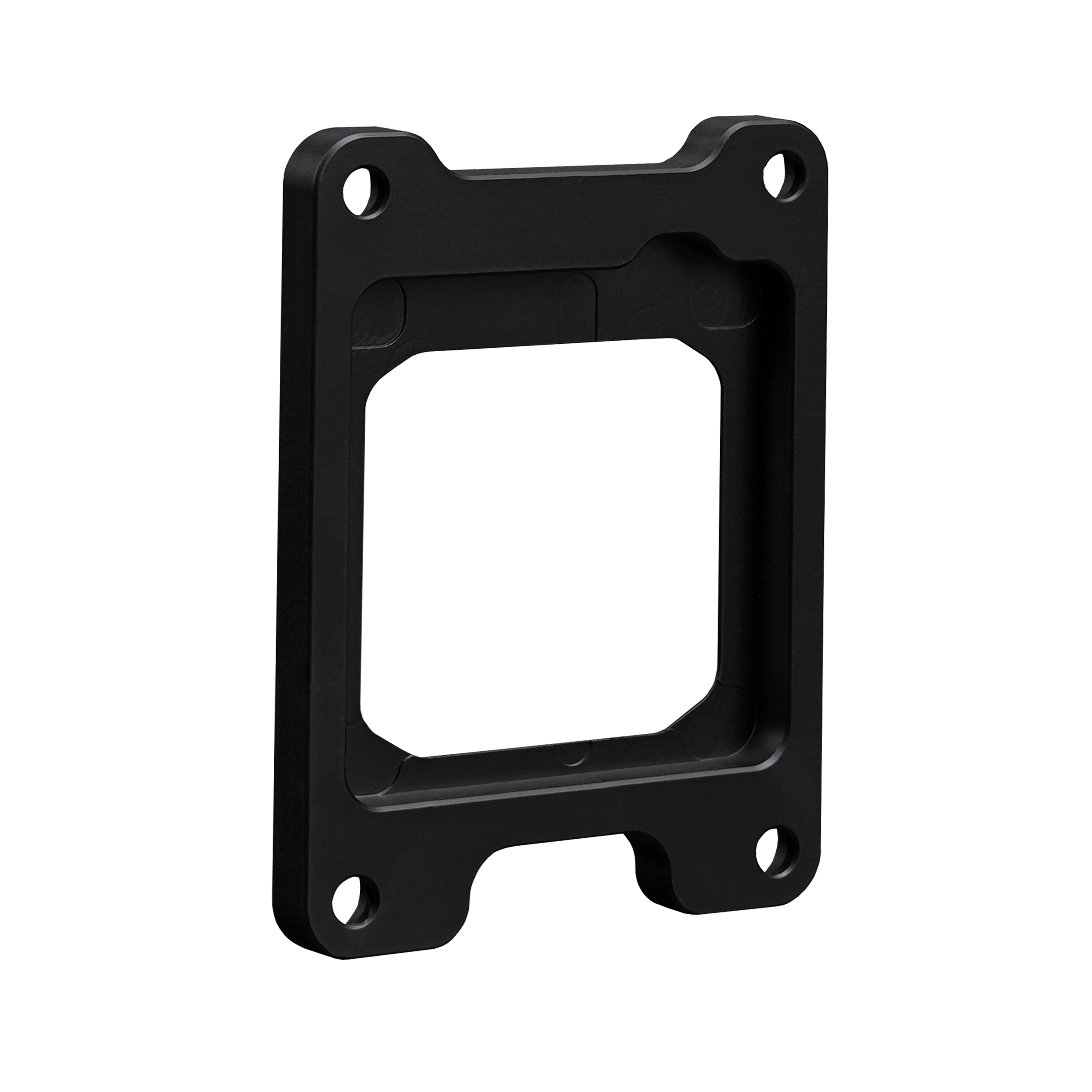

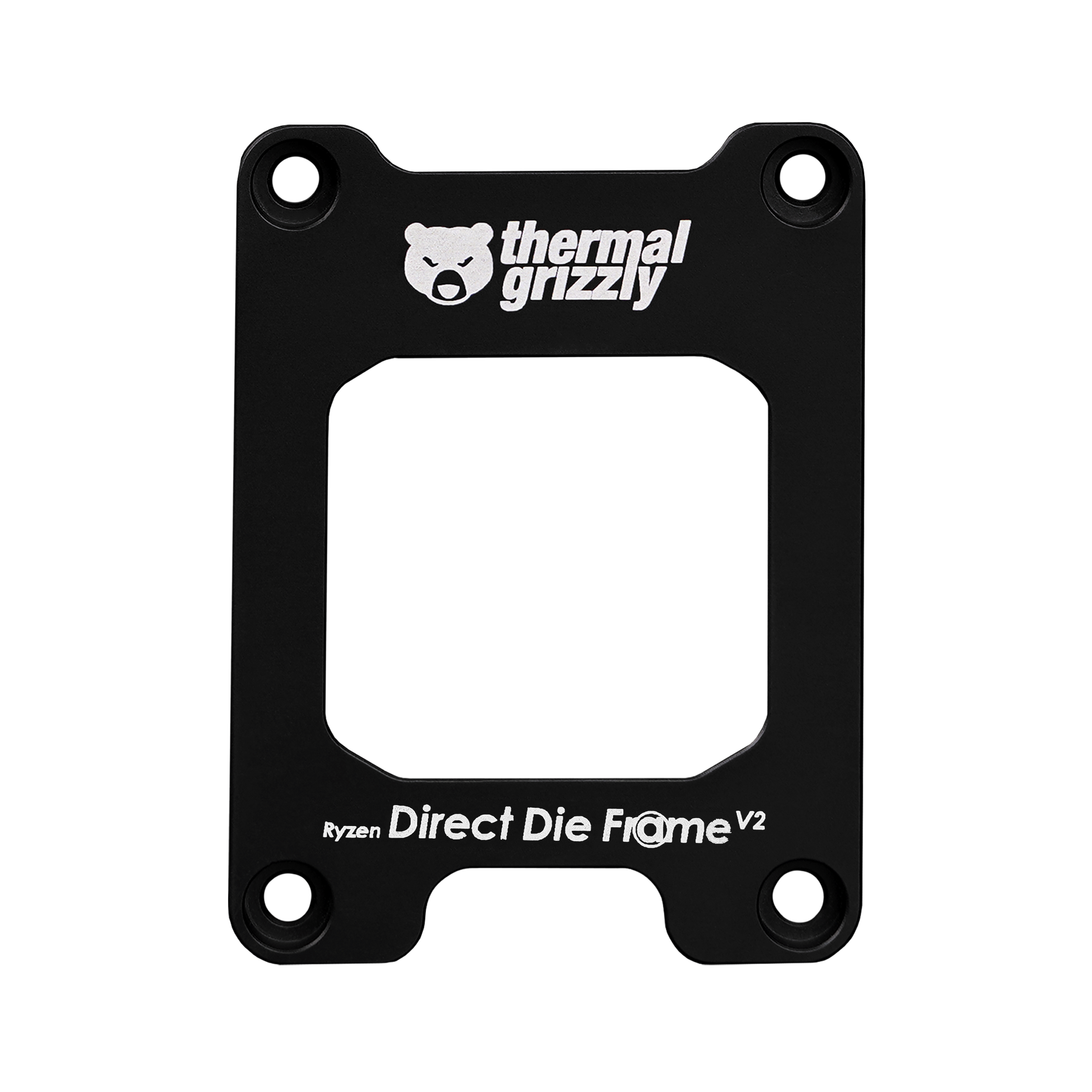

The Ryzen Direct Die Frame V2 (DDFV2) is a CPU mounting frame designed specifically for the AMD 7000 series X3D processors, but retains compatibility with non-X3D CPUs. It should be noted that the DDFV2 is not compatible with the Ryzen 8000G processors.

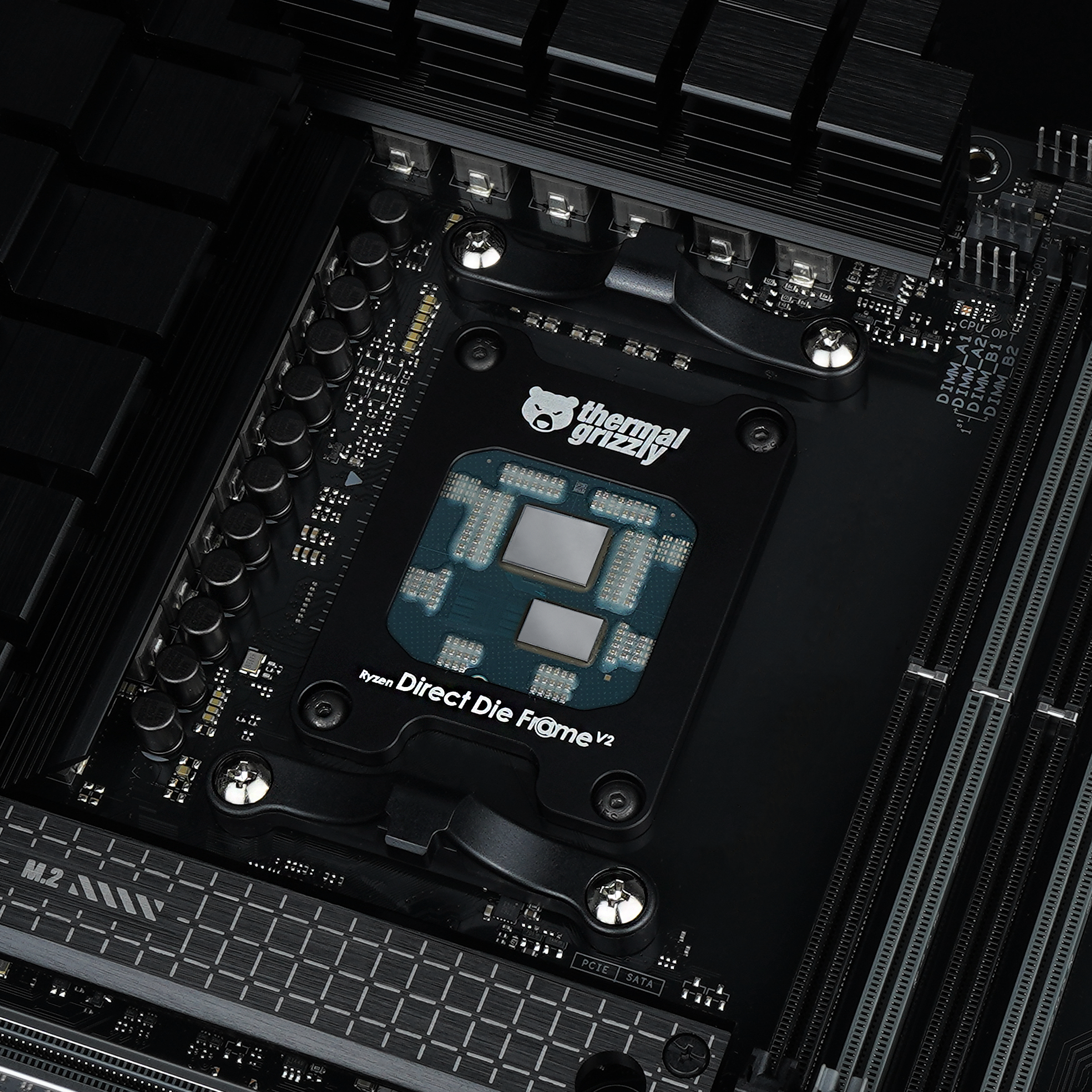

It is compatible with both the normal Ryzen 7000 processors and the X3D CPUs, so that these can be mounted with this direct die frame without the integrated heatspreader and without the Socket Actuation Mechanism (SAM). The changes to the Ryzen Direct Die Frame V2 compared to the AMD Ryzen 7000 Direct Die Frame were necessary after AMD subsequently added additional bonding points on the X3D CPUs.
- Compatible with AMD Ryzen 7000 & 7000X3D
- Enables mounting of delidded Ryzen CPUs
- Replaces Socket Actuation Mechanism (SAM)
- Easy mounting
- Anodized aluminum
Attention: Removing the heatspreader (“delidding”) of a processor is at your own risk! The manufacturer's warranty expires when the CPU is delidded! Damage caused by delidding the CPU is not covered by the manufacturer's warranty!
Removing the Socket Actuation Mechanism (SAM) of the mainboard may invalidate the manufacturer's warranty of the mainboard manufacturer!
Compatibility note
The Ryzen Direct Die Frame V2 is compatible with the following processors:
- Ryzen 5 7600
- Ryzen 5 7600X
- Ryzen 7 7700
- Ryzen 7 7800X3D
- Ryzen 9 7900
- Ryzen 9 7900X
- Ryzen 9 7900X3D
- Ryzen 9 7950X
- Ryzen 9 7950X3D
Note on Ryzen-9000 and 9000X3D Compatibility
The AMD Ryzen 7000 Direct Die Frame V2 is, according to internal testing, NOT compatible with AMD's Ryzen-9000 and 9000X3D processor series (as of Nov 2024).
Attention: The Ryzen 7000 Direct Die Frame v2 is NOT COMPATIBLE with the APUs of the Ryzen 8000G series! For more information on the compatibility of the AMD Ryzen 5 8500G, AMD Ryzen 5 8600G and AMD Ryzen 7 8700G with our products, please watch the following video: “AMD Ryzen 8000 Delidded - Liquid Metal Changes Everything!”

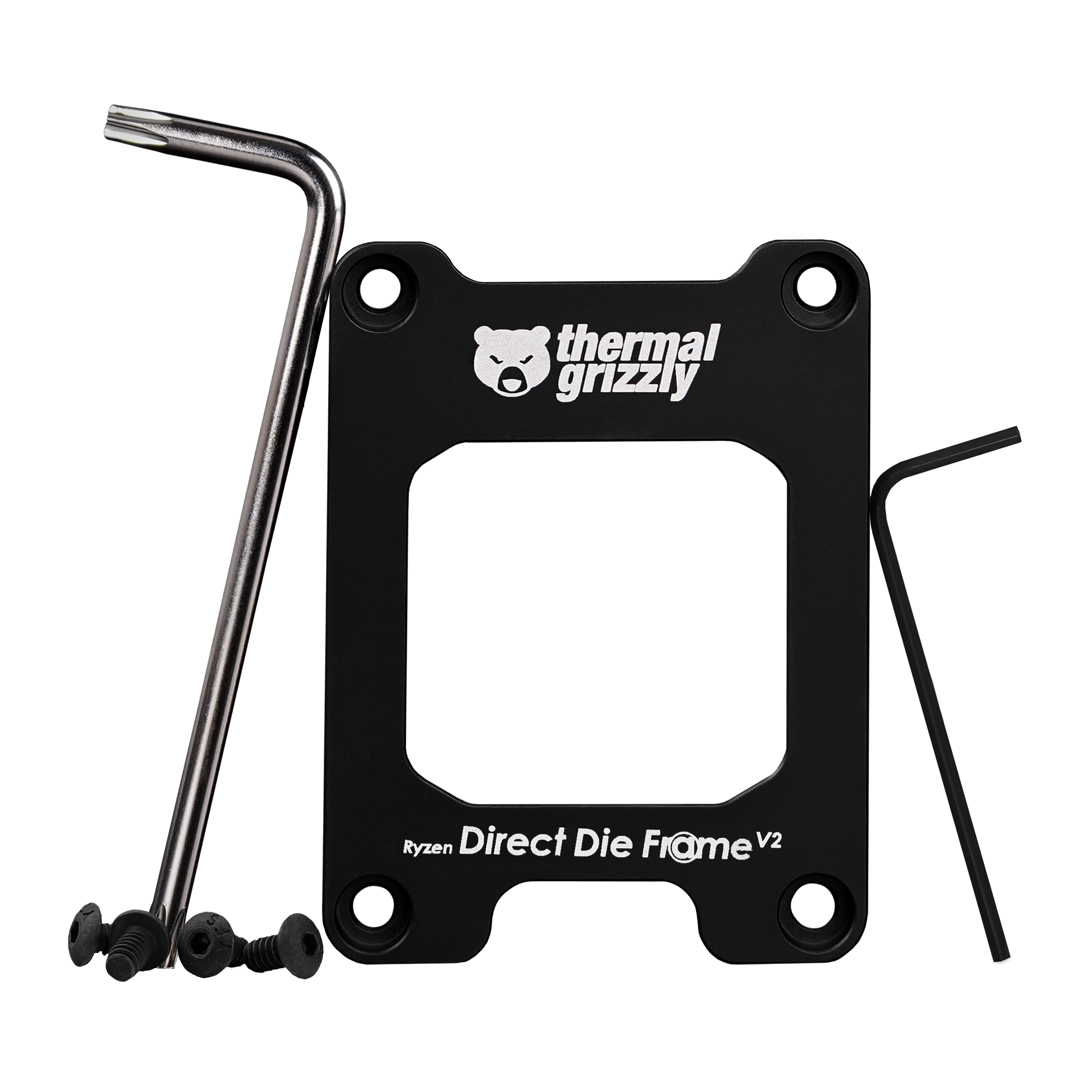

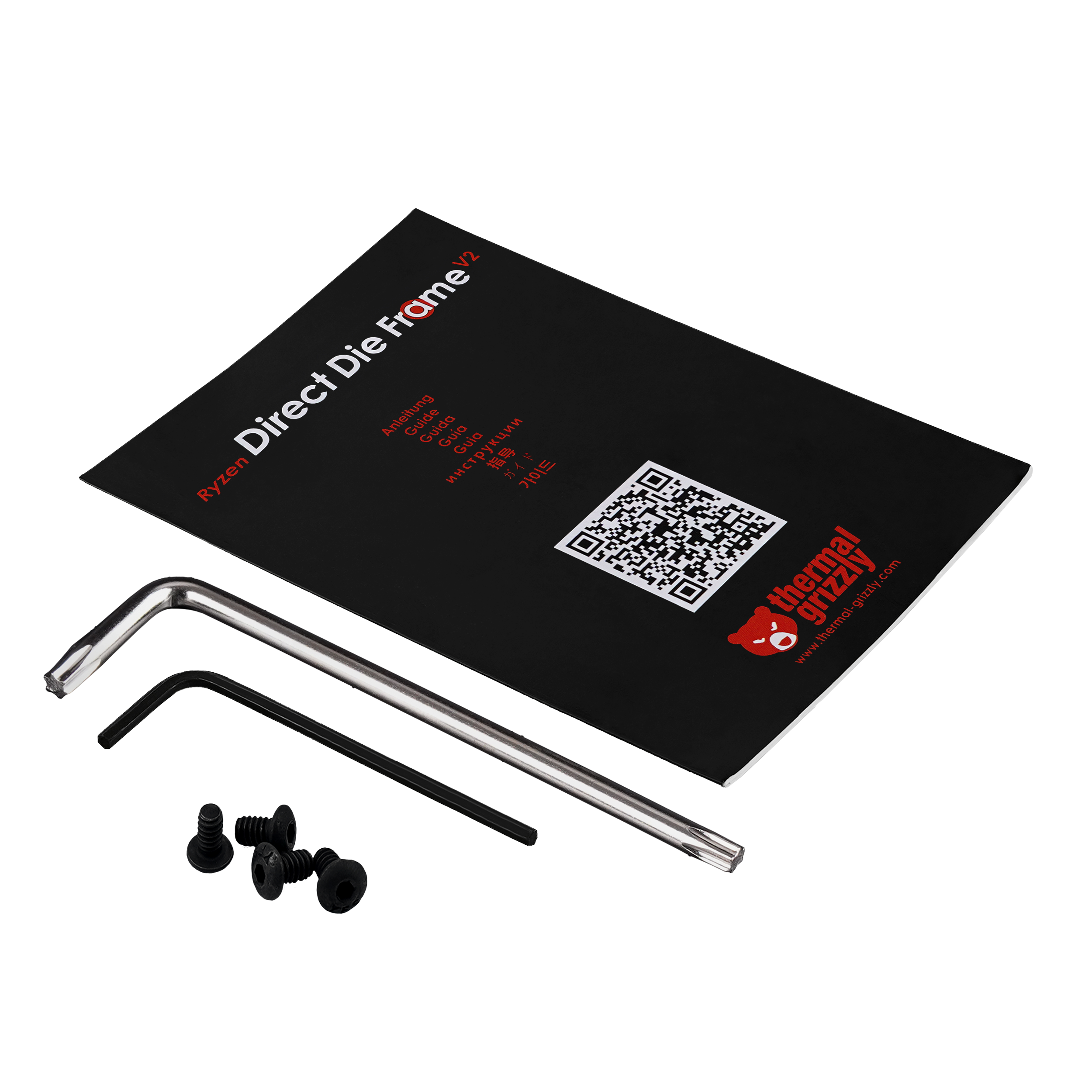

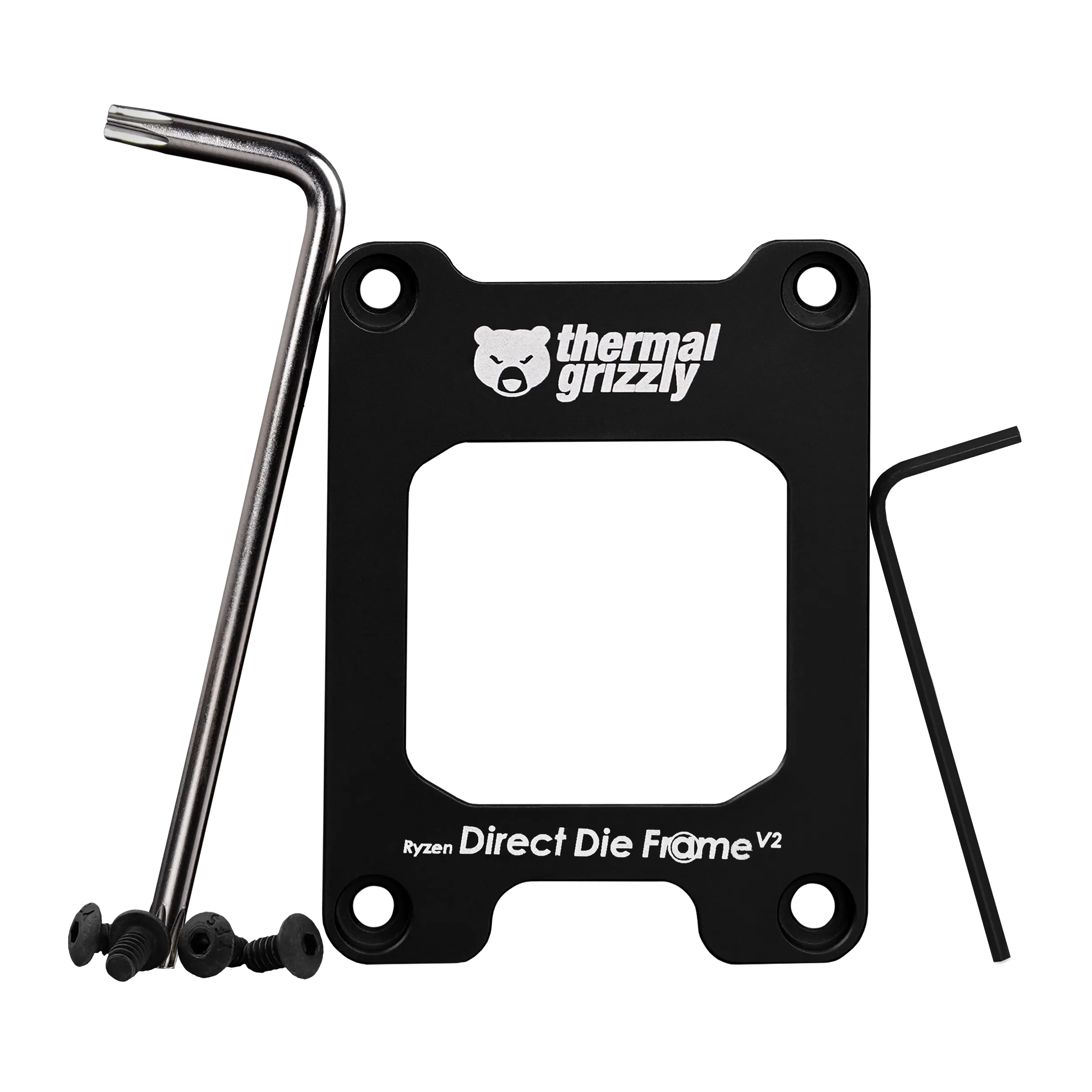

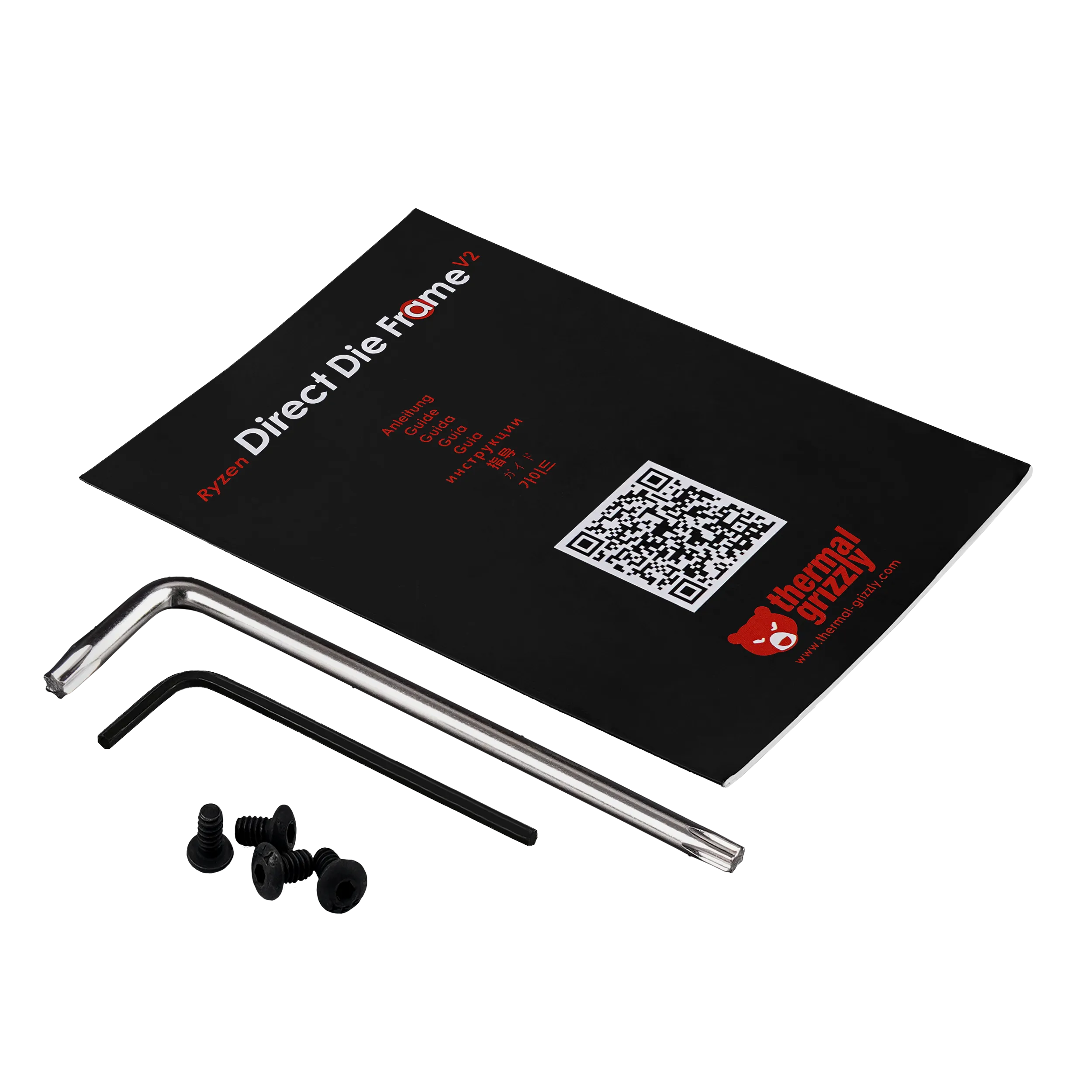

Scope of delivery
- 1x Direct Die Frame V2
- 4x pan-head screws UNC thread 1/4"
- 1x hexagon socket wrench 5/64"
- 1x angle wrench Torx T20
| Color: | black |
|---|---|
| Material: | Aluminum |
| Socket manufacturer: | AMD |
| Socket type: | AM5 |
