Lapping-Tool

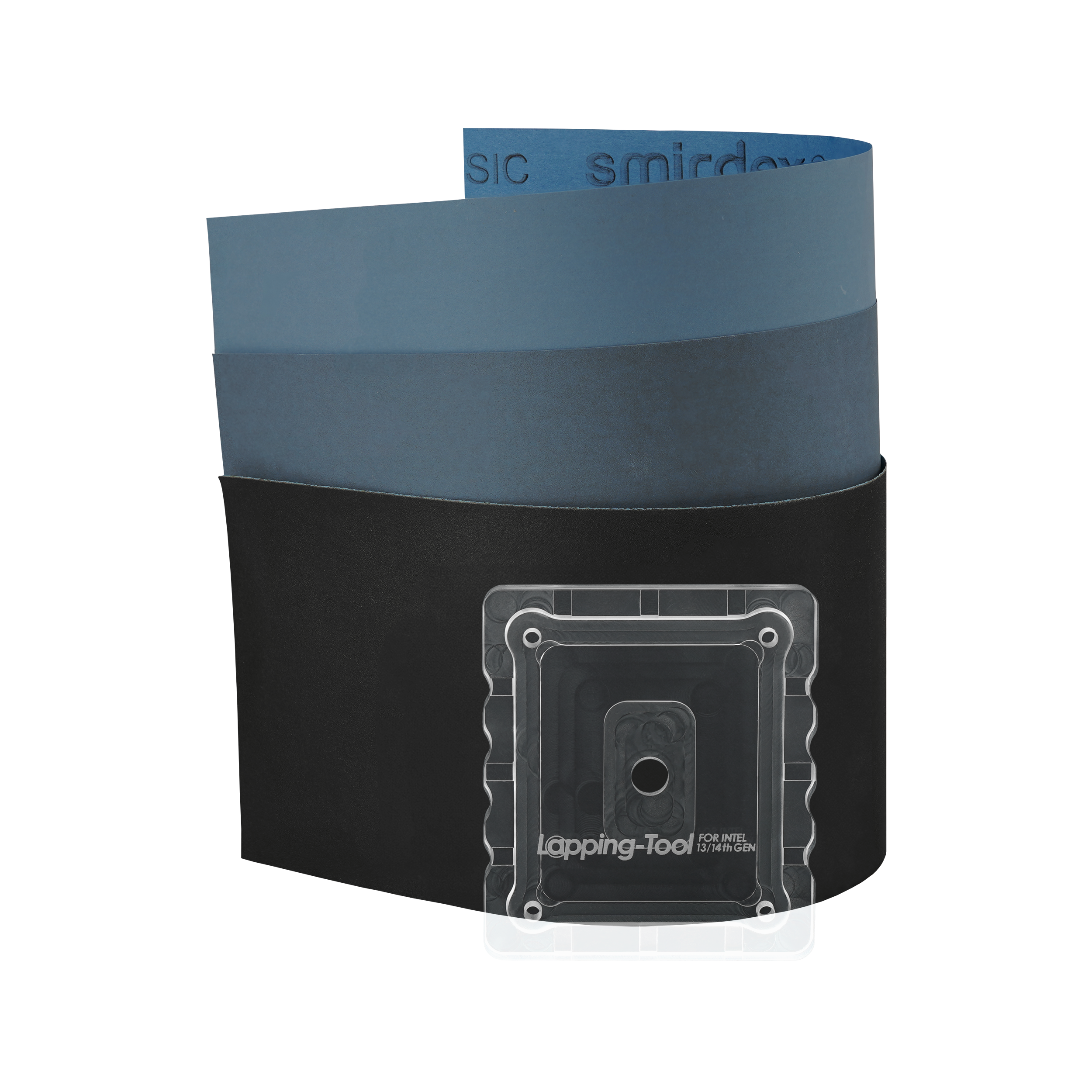

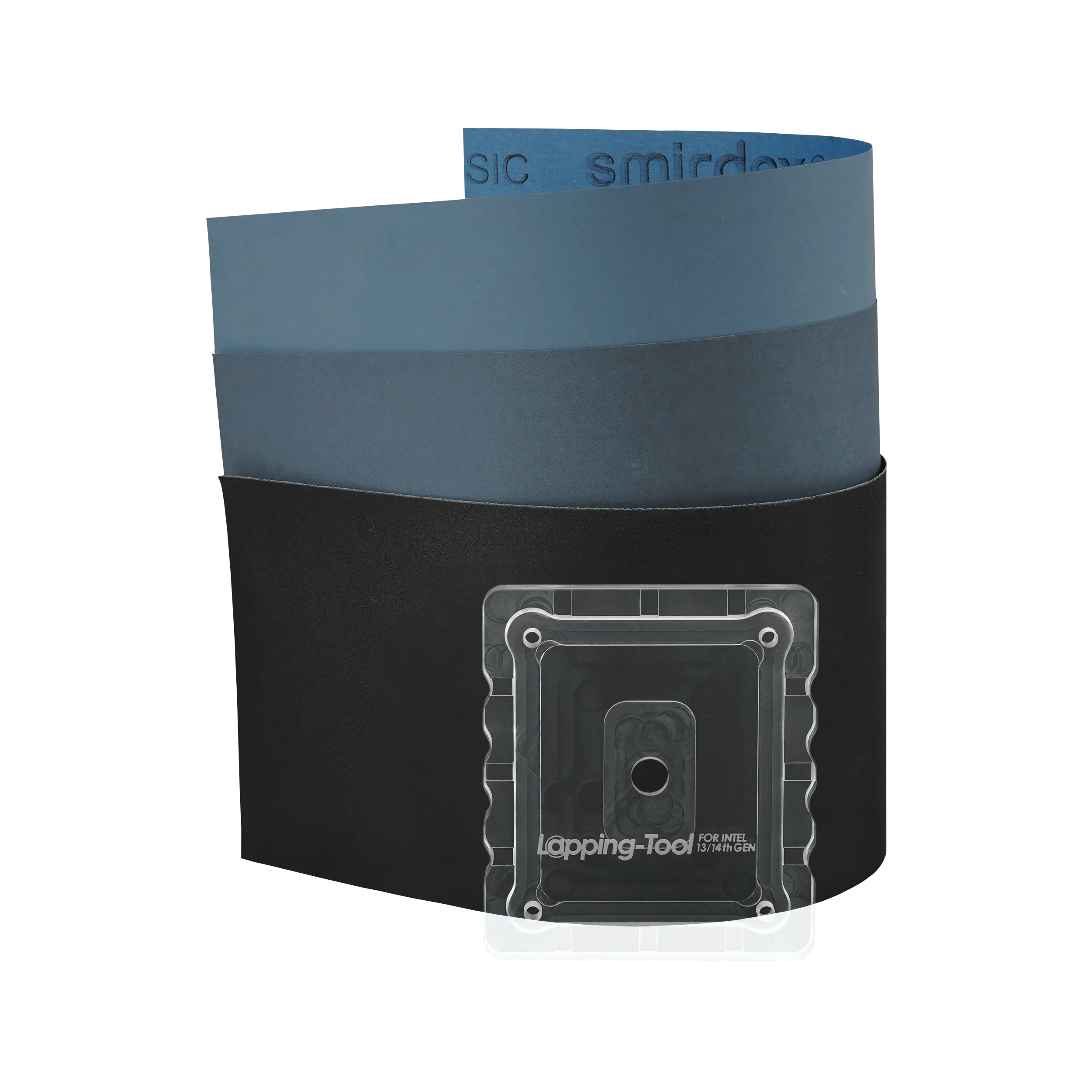

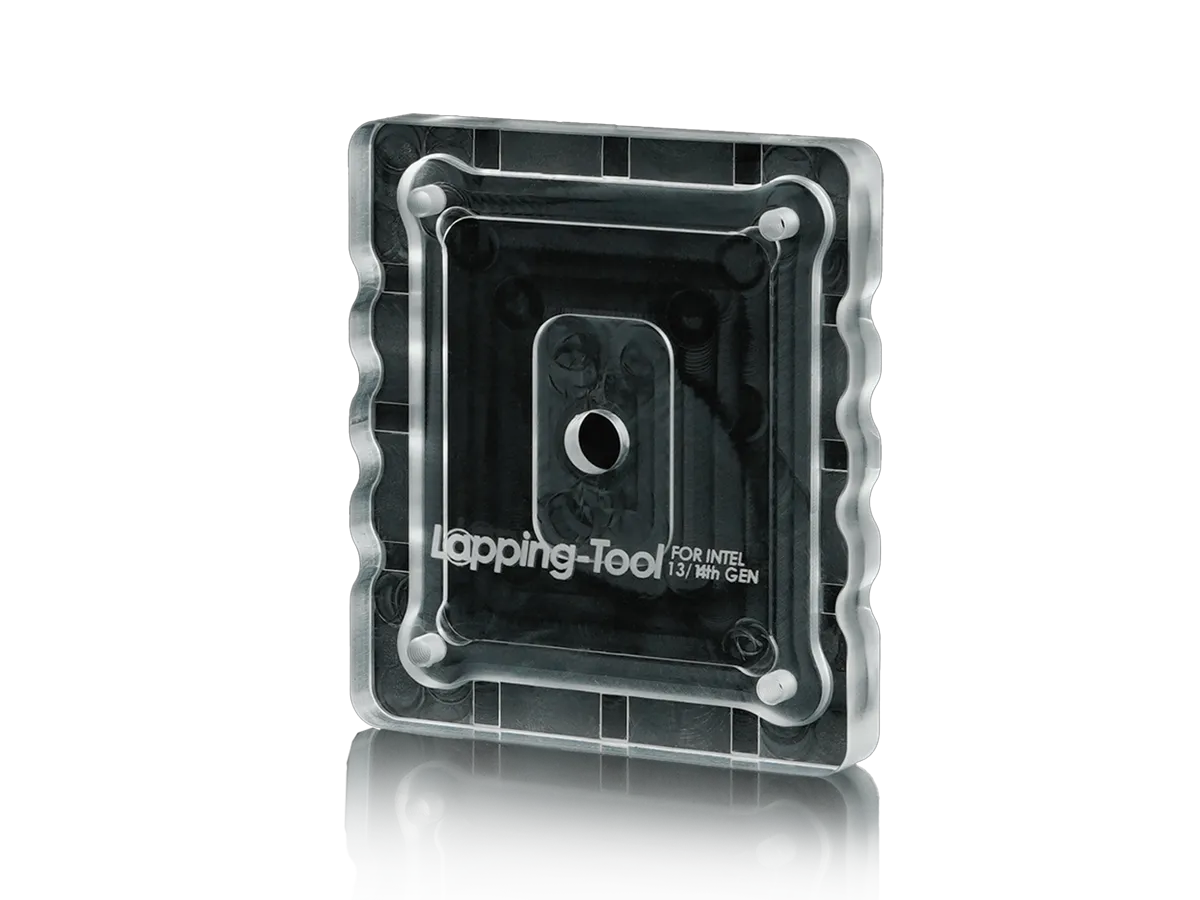

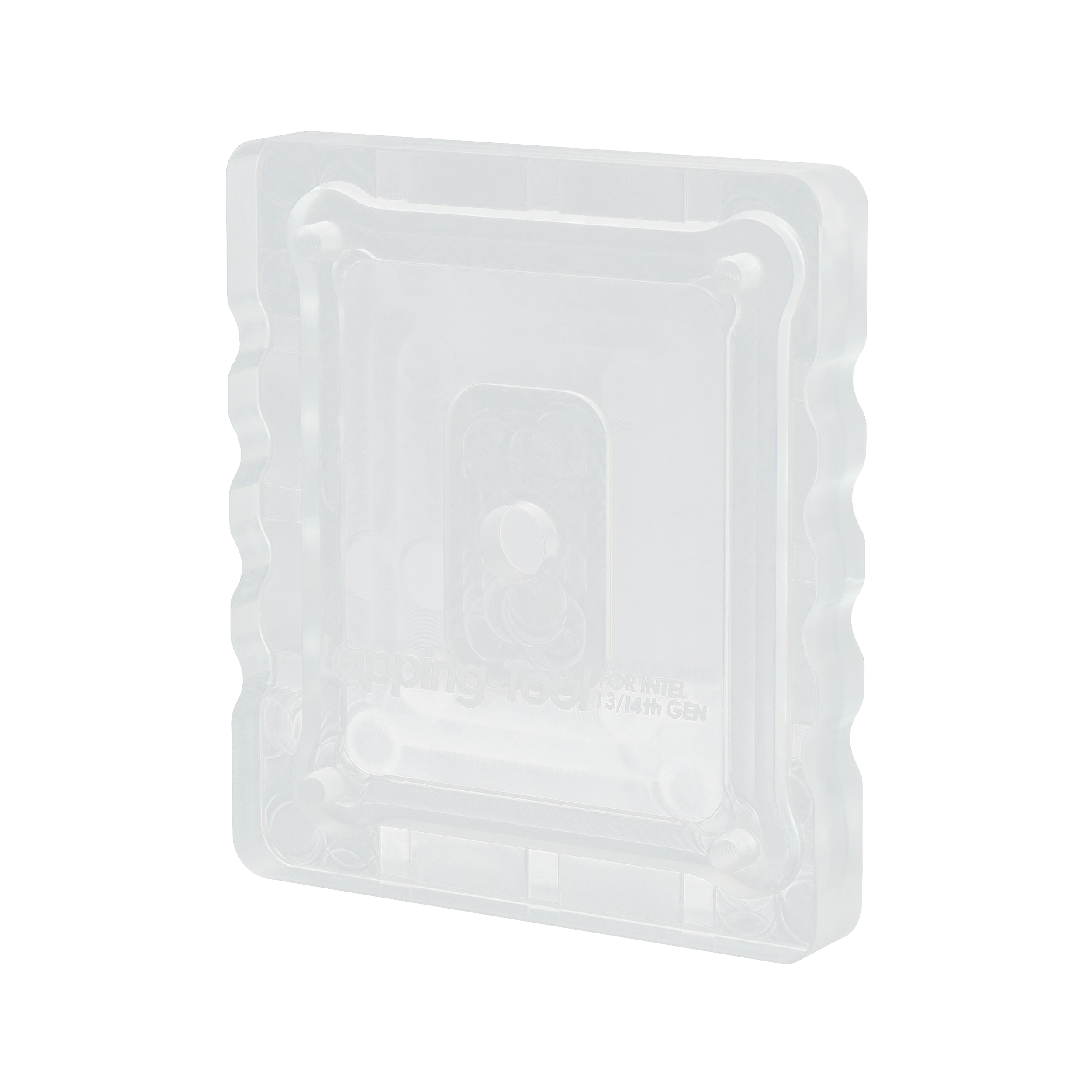

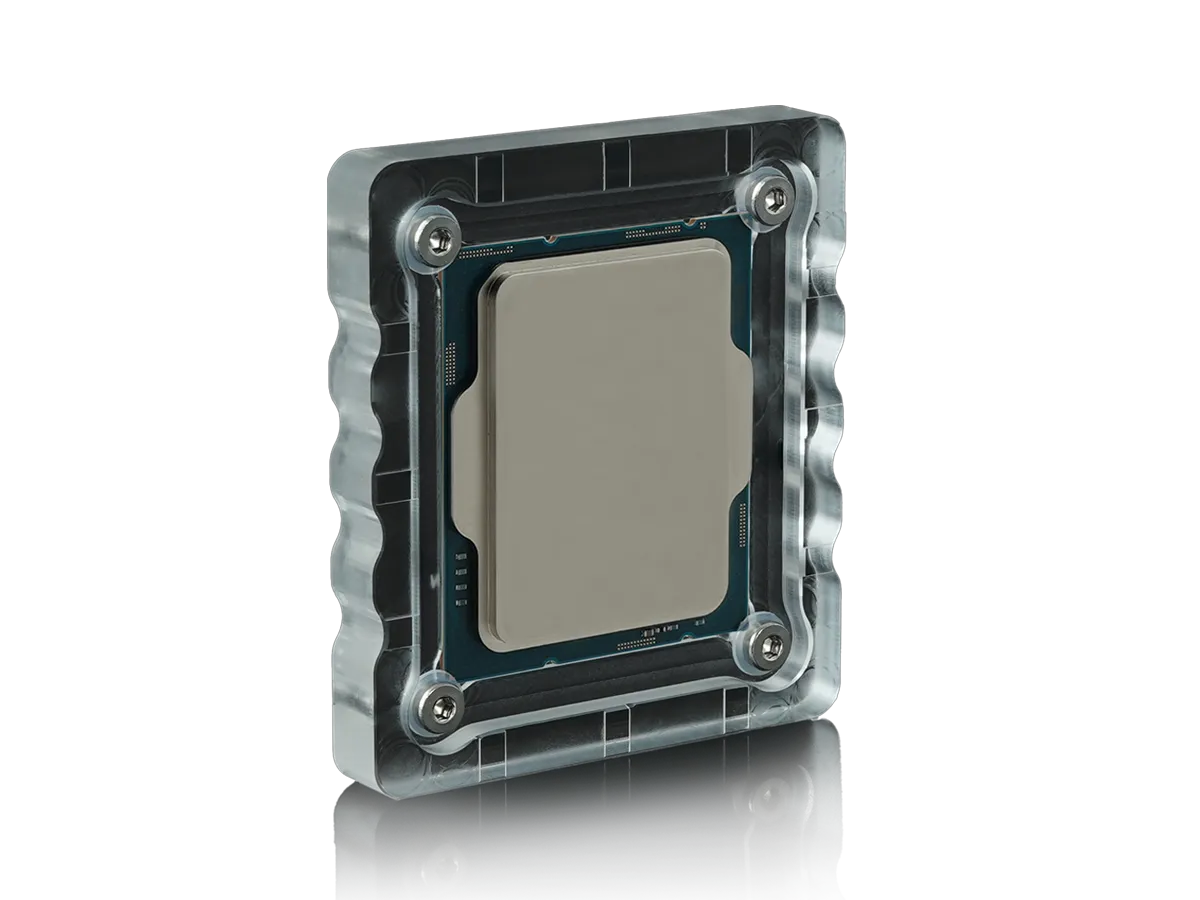

The Lapping-Tool for Intel's 13th/14th Gen processors allows the heat spreader to be safely lapped. The CPU is simply mounted on the Lapping-Tool using the enclosed screws. The tolerances of the Lapping-Tool allow the heat spreader to be ground down by 0.2 millimetres. The 13th/14th Gen Lapping-Tool is compatible with Intel 12th Generation Core CPUs. Sandpaper in grit sizes 400, 1200 and 2,500 is included.
- Simplifies CPU sanding
- For Intel Core 13th/14th Gen (Compatible with 12th Gen)
- CNC-milled acrylic glass
- Complete set with sandpaper
- Single use recommended

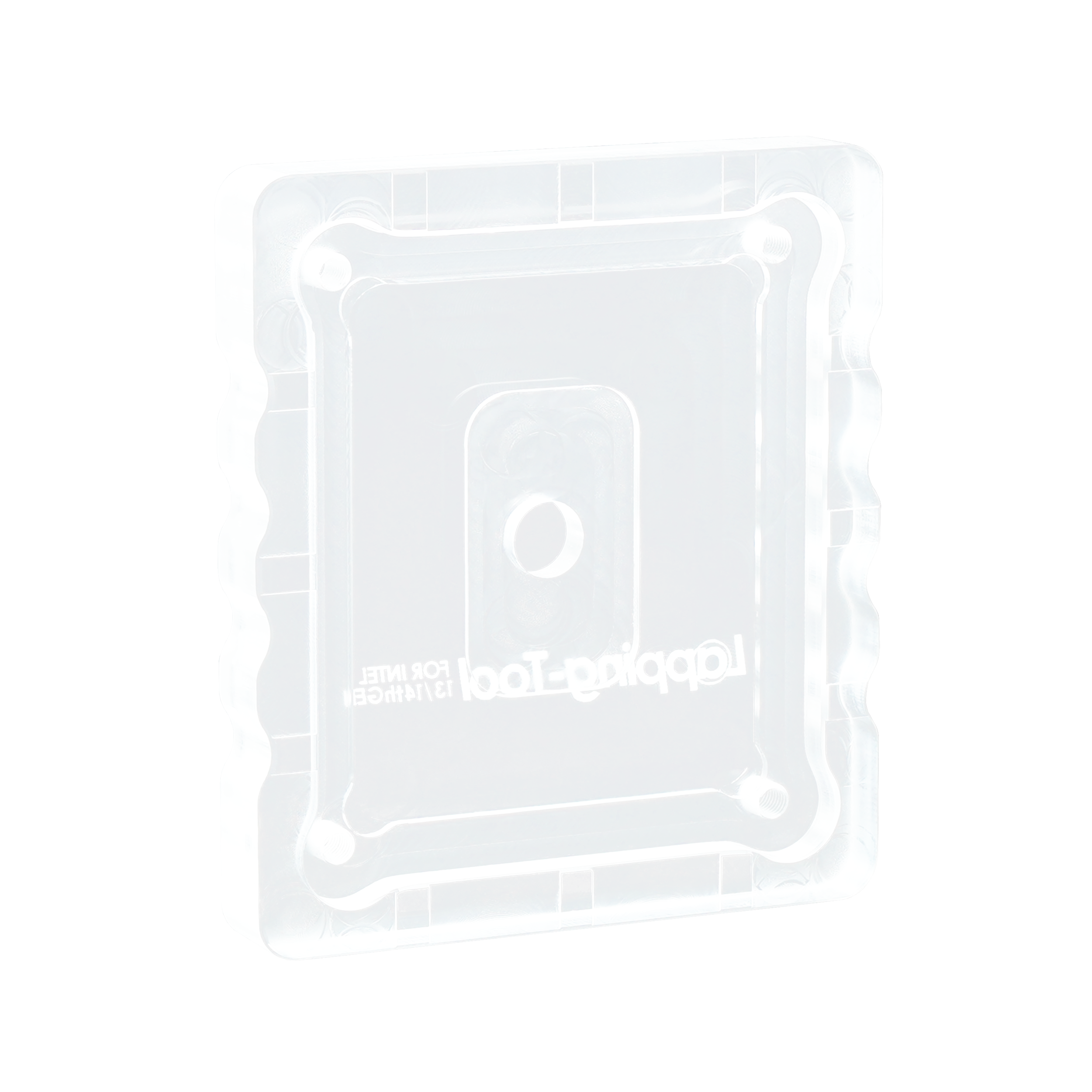

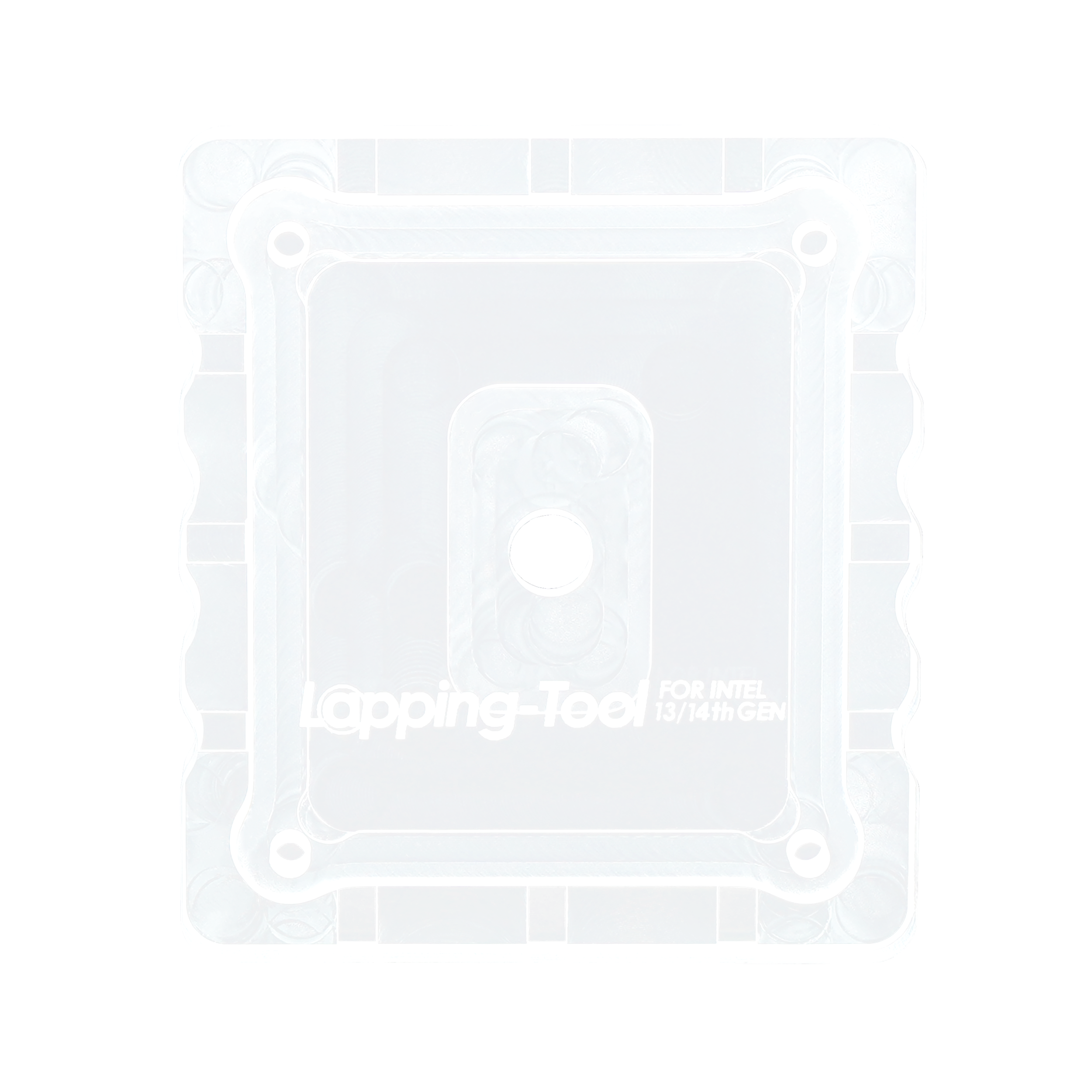

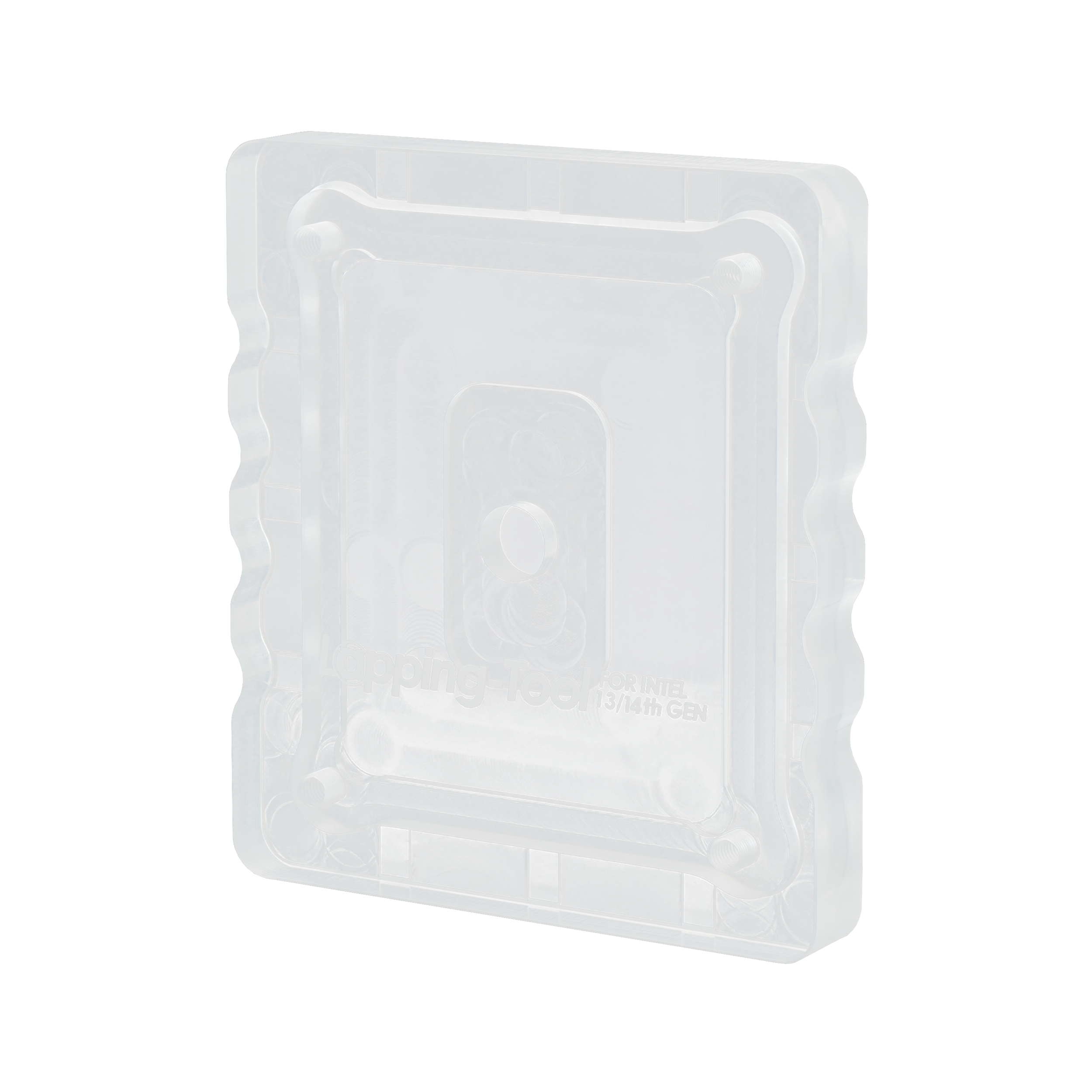

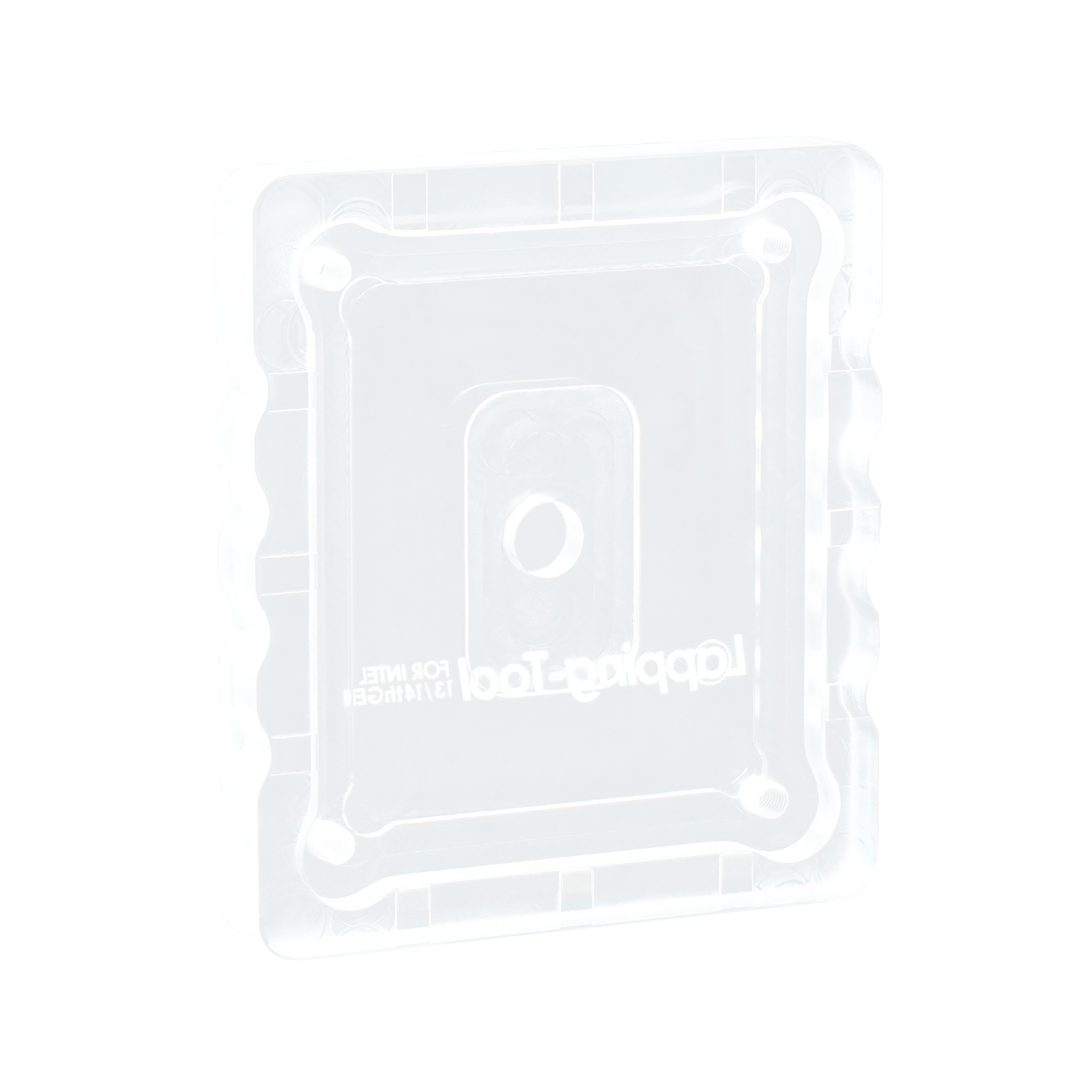

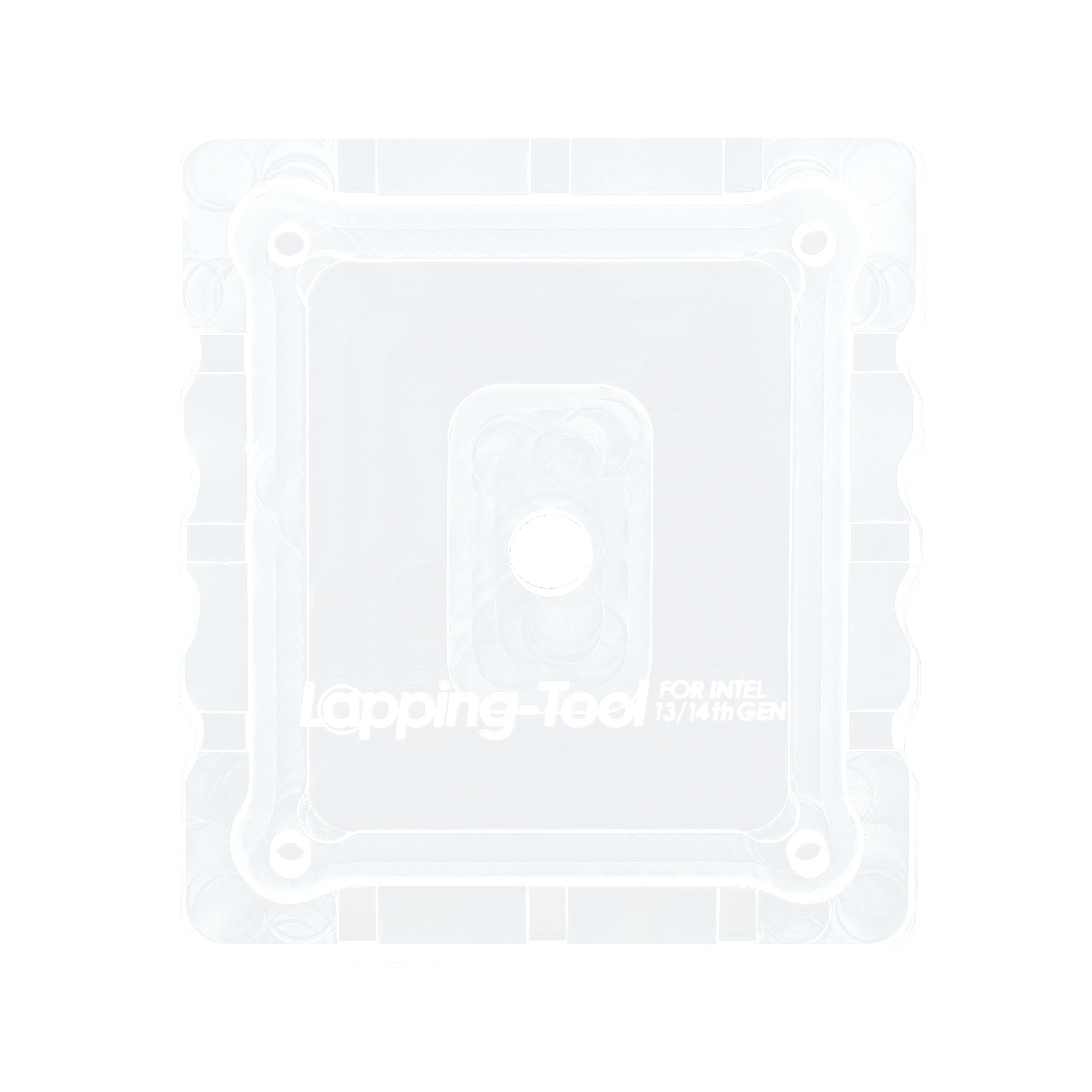

On the Lapping-Tool, there are ridges on the acrylic glass around the CPU. These ridges are 0.2 millimetres high. When the ridges are completely removed, stop sanding. Processors of the 12th and 13th generation are compatible with both the 12th, 13th and 14th Gen Contact Frame as long as they are not ground down more than 0.2 millimetres.
Attention: Please note that grinding the CPU will invalidate the warranty. To ensure the largest possible contact surface between the ILM and the base plate of the CPU cooler, the latter should also be Ground.

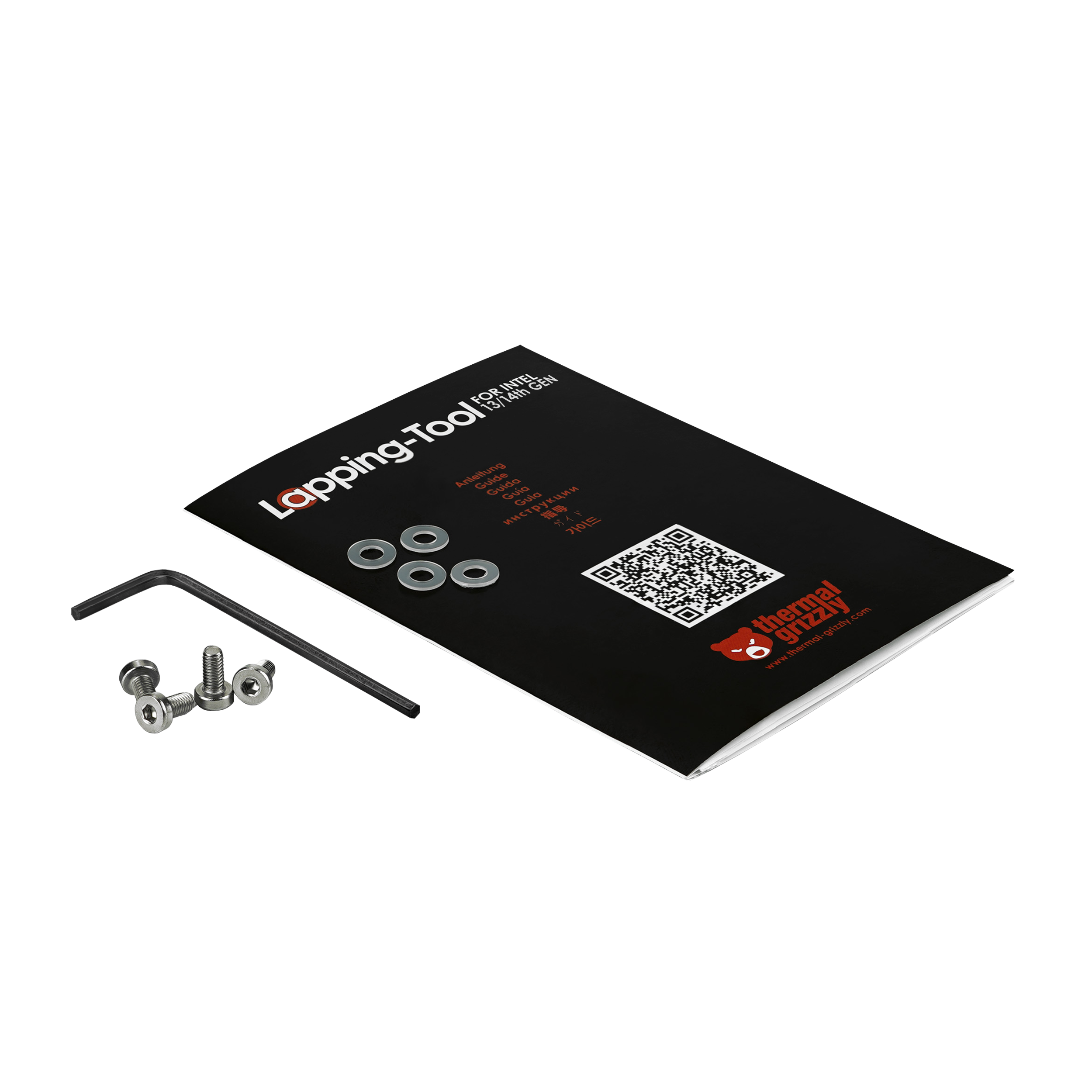

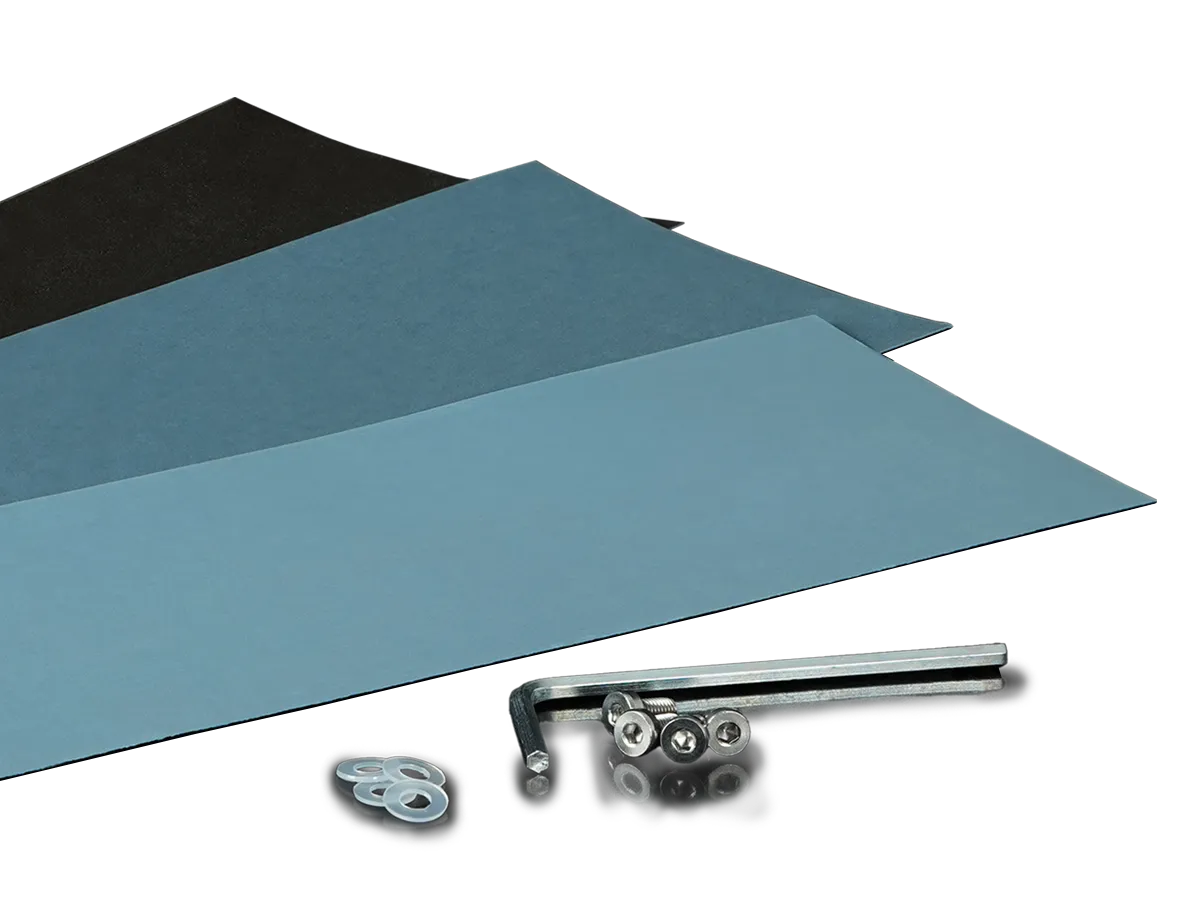

Scope of delivery
- 1x Lapping-Tool
- 4x screw
- 4x PU washer
- 1x hexagon socket spanner 2,5mm
- 1x Sandpaper 400 grit
- 1x Sandpaper 1.200 grit
- 1x Sandpaper 2.500 grit
| Color: | clear |
|---|---|
| Material: | acrylic |
| Socket manufacturer: | Intel |
| Socket type: | LGA 1700 |
