Minus Pad 8
The high-performance heat-conducting pads of the minus pad 8 series have a very elastic and adaptable surface with very high thermal conductivity.
Even the smallest component differences can thus be compensated very well.
Product number:
S-TG-MP8-30-30-15-1R
EAN:
4260711990229
MPN:
TG-MP8-30-30-15-1R

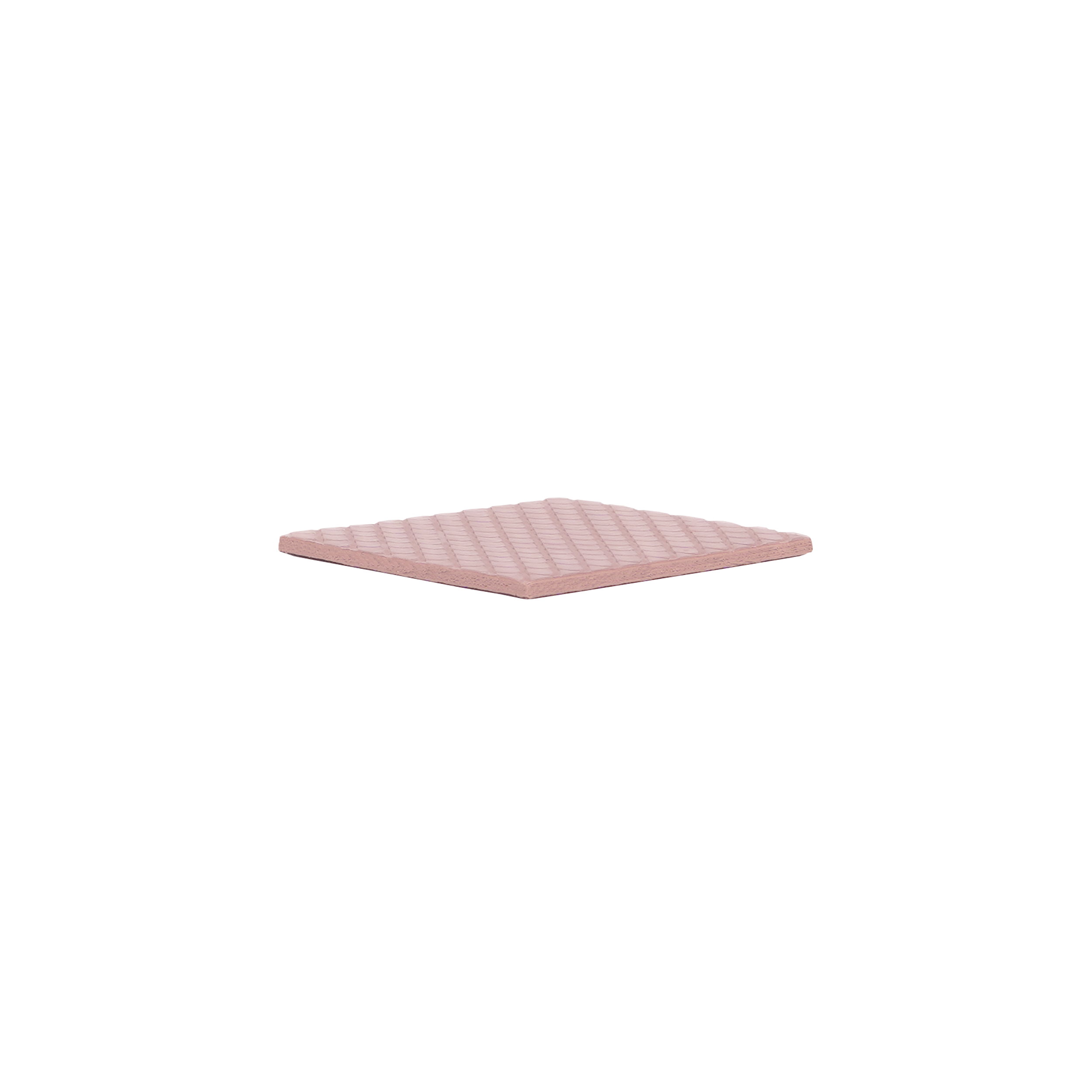

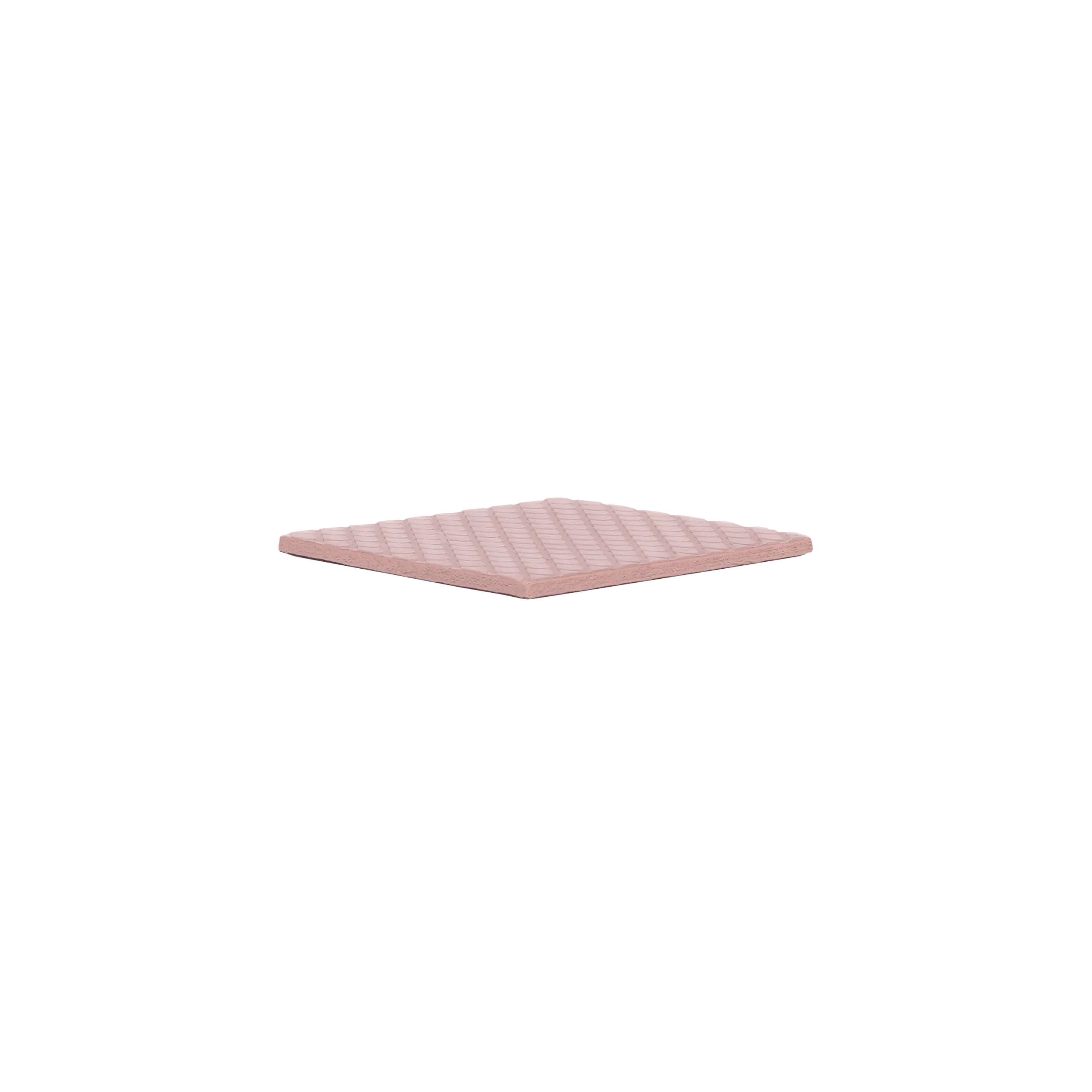

Product information "Minus Pad 8
- 1.5 mm
- 1 pc.
- 30 x 30 mm"
The high performance thermal pads of the Thermal Grizzly Minus Pad series consist of a very elastic and flexible surface area with very high thermal conductivity, compensating for even the smallest of gaps between components. Available in a variety of different sizes and thicknesses.
The easy to process and flexible minus pads are made up of different constituents, based on a ceramic silicon formula complex and nano aluminum oxide. Thus, the pads ensure a constant, optimal heat transfer.
The lightest of touches is enough to attach them optimally. All pads are ecofriendly and RoHS-compliant.
- High thermal conductivity
- High compressibility
- Electrical insulation
The minus pads 8 are available in the sizes of 30x30mm, 120x20mm, 100x100mm as well as in the thicknesses of 0,5mm, 1mm, 1,5mm, 2mm, 3mm.
Downloads "Minus Pad 8"
| Color: | pink |
|---|---|
| Degree of hardness: | Shore 00-60 |
| Electrically insulating: | Yes(8KV/mm ASTM D149) |
| Flammability: | V-0 |
| Operating temperature: | -100°C to +250°C |
